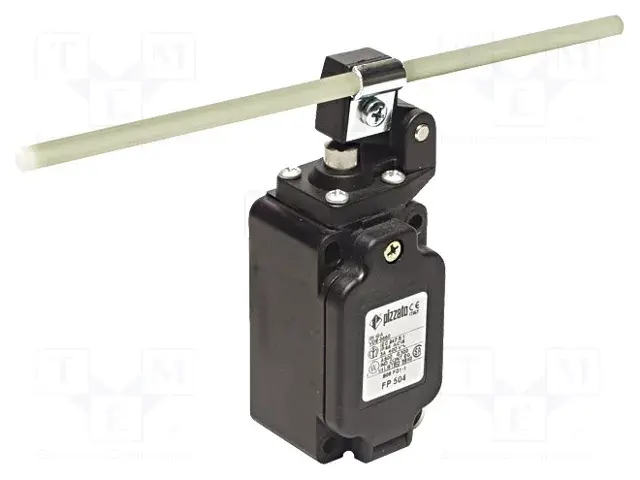

FP 504-M2
Position switch, piston plunger with adjus. glass-fibre rod lever
General features
Housing:
Made of glass-reinforced technopolymer, one threaded M20x1,5 conduit entry (FP series)
Contact block:
1NO+1NC snap action (B5)
Head:
Piston plunger with adjus. glass-fibre rod lever
Protection degree:
IP67 according to EN 60529
Specification
Manufacturer | ||
Type of sensor | ||
Kind of actuator | adjustable fiber glass rod, max length 187mm | |
Output configuration | ||
Contact current max. | ||
Switched voltage | ||
Connection | ||
IP rating | IP67 | |
Body dimensions | 60x40x39mm | |
Number of mounting holes | 4 | |
Operating temperature | -25...80°C | |
Body material | plastic | |
AC contacts rating @R(at resistive load) at resistive load | 6A / 250V AC | |
DC contacts rating @R(at resistive load) at resistive load | 6A / 24V DC | |
Mechanical durability | 20000000 cycles | |
Mounting holes pitch | 30/60mm | |
Switches features | snap action contacts |
LIMIT SWITCH FP504
₹3,000.00Price
